Six-Axis Robot Adhesive Dispensing System

Robotic dispensing cell for gluing and sealing applications
Six-Axis Robot Adhesive Dispensing System
Six-Axis Robot Adhesive Dispensing System Six-Axis Robot Adhesive Dispensing System
Request a Quote

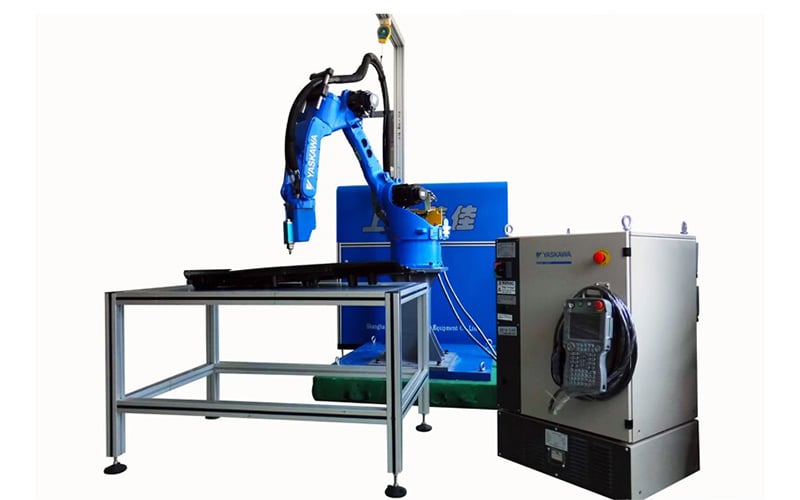

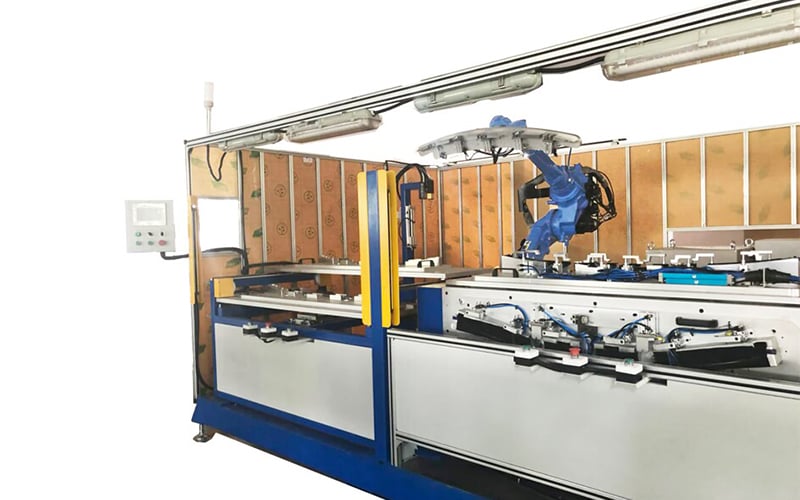

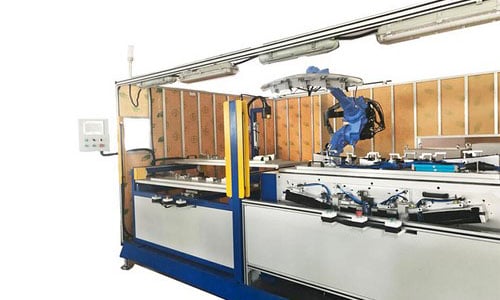

As a specialist manufacturer of formed-in-place foam gasket machines, we have developed an adhesive dispensing robot that can automatically dispense adhesive on various products, particularly for components with complex contours.
Our control system seamlessly integrates with the six-axis robot adhesive dispensing system, which supports one-, two-, and multi-component polymer materials with a wide range of viscosities, ensuring optimal sealing and gasketing performance.

  • Application rate 0.3-5g/s
  • Gasket width 5-30mm (initiative in domestic market)
  • Travel speed 0-30 m/min
Applications

This six-axis robot adhesive dispensing system is extensively utilized in 3-dimensional dispensing applications for auto parts, energy storage products, electronic devices, etc.

Specifications
Travel Range (X/Y/Z) 2250×1250×200mm (customizable)
Dimensions 2500×2200×2200mm (customizable)
Weight 1600kg
Total Power 3-4kW
Gasket Width 5-30mm (adjustable within the range)
Mixing Ratio 1:1-10:1
Application Rate 0.3-5 g/s
Travel Speed 0-30 m/min
Working Temperature -15°C to +35°C
Features
  • A linear robot with an intelligent control system switches freely between 2D and 3D mode.
  • CNC multi-axis programming helps accommodate complex component geometries.
  • Intelligent parameter storage allows for flexible movement along any path.
  • Intelligent verification of the density of foam gaskets, accurate modification of foam gasket stiffness, and support for various foam gasket brands for optimal performance.
  • Customizable ports tailored to specific operational requirements.
  • Compatible with Industry 4.0 MESTIntel and other systems.
  • Self-engineered mixing head (SJ600M) features an instant nozzle-closing mechanism to prevent material drips and blockages, alongside automated cleaning and pressure control functionalities.
  • Gear metering pump from the German manufacturer Barmag, with metering accuracy of ±2%.
  • A high-precision reduction drive from Panasonic to achieve accurate repositioning. A gear rack incorporated along the guide rail to improve speed and minimize vibration at corners.
  • The water-cooled storage tank features a two-layered construction using 316 stainless steel, automated stirring functionality to maintain material consistency, advanced monitoring of the material's gas content, automatic air filling, an integrated underload alarm to maintain consistent material levels, automated foam gasket filling for seamless production, sophisticated temperature control that operates efficiently without the need for an external air conditioning device, offering convenience and reducing space requirements.

Two component polyurethane

  • The foam gaskets get foamed directly on the applied product surface. The machine dispenses a soft, elastic foam gasket, ensuring adaptability and durability in various applications.
  • Made of polyurethane, the foam gasket is a mixture of two essential components: polyol (component A) and isocyanate (component B). The foam gasket can achieve its final state within minutes.
  • Width/height ratio: 2:1-3:1
  • Curing time: 10-20 minutes
  • Foam gaskets brand: Shanghai Shanjia
